VM Pump Parts
The VM Pump Co. is your official source for VM Pump Parts. Please contacts at the numbers to the right for more information.

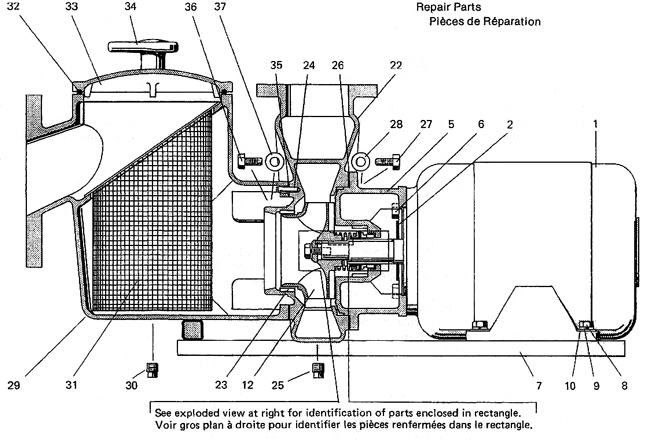

REPAIR PARTS BREAKDOWN FOR VMC & VMB PUMPS |
|||||
Key # | Description | Qty. | Product Number | List Price $CA | |
1 | Motor: | ||||
5 HP VM 1/60/230, 184JM | 1 | 9017-9235 | $ | 1,288.00 | |
5 HP VM 3/60/208-230/460, 182JM | 1 | 9017-9243 | $ | 1,159.00 | |
5 HP VM 3/60/575, 182JM | 1 | 9017-9250 | $ | 1,159.00 | |
7.5 HP VM 1/60/230, 213TCZ | 1 | 9010-8697 | $ | 2,163.00 | |
7.5 HP VM 3/60/208-230/460, 184JM | 1 | 9017-9268 | $ | 1,236.00 | |
7.5 HP VM 3/60/575, 184JM | 1 | 9017-9276 | $ | 1,236.00 | |
10 HP VM 1/60/230, 215TCZ | 1 | 9017-9723 | $ | 3,193.00 | |
10 HP VM 3/60/208-230/460, 213TCZ | 1 | 9017-9722 | $ | 1,730.00 | |
10 HP VM 3/60/575, 213TCZ | 1 | 9010-9844 | $ | 1,730.00 | |
2 | Flinger | 1 | 22-0727-06 | $ | 10.60 |
3 | Sleeve: | ||||
5VMC-S2, T, T5 & 7.5VMC-T, T5 | 1 | 08-1000-00 | $ | 184.00 | |
5VMB-S2, T, T5 & 7.5VMB-T, T5 | |||||
7.5VMC-S2 & 10VMC-S2, T, T5 | 1 | 08-0328-07 | $ | 201.00 | |
7.5VMB-S2 & 10VMB-S2, T, T5 | |||||
4 | O-Ring 1" x 1-1/8" | 1 | 47-0022-09 | $ | 1.60 |
5 | Bracket: | ||||
5VMC-S2, T, T5 & 7.5VMC-T, T5 | 1 | 02-2500-09 | $ | 355.00 | |
7.5VMC-S2, 10VMC-S2, T, T5 | 1 | 02-2510-07 | $ | 809.00 | |
5 VMB-S2, T, T5 & 75VMB-T, T5 | 1 | 02-2500-17 | $ | 540.00 | |
7.5VMB-S2, 10VMB-S2, T, T5 | 1 | 02-2510-15 | $ | 1,230.00 | |
6 | Hex Cap Screw 3/8-16 x 7/8"L - 5 & 7.5VM | 1-4 pk | 14-1293-24 | $ | 5.00 |
6 | Hex Cap Screw 1/2-13 x 1 1/4"L - 10VM | 1-4 pk | 14-1330-29 | $ | 8.80 |
7 | Base: | ||||
5VM, 7.5VM-T | 1 | 12-0618-00 | $ | 129.00 | |
7.5VM-S2, 10 VM | 1 | 12-0618-18 | $ | 232.00 | |
8 | Hex Cap Screw 3/8-16 x 1"L - 4 / Pkg | 1-4 pk | 14-1294-23 | $ | 5.00 |
9 | Washer 3/8" - 4 / Pkg | 1-4 pk | 14-0722-19 | $ | 2.60 |
10 | Washer 3/8" - 4 / Pkg | 1-4 pk | 14-0722-19 | $ | 2.60 |
11 | Mechanical Seal Assembly | 1 | 10-0369-03 | $ | 80.40 |
12 | Impeller: | ||||
5VMB | 1 | 05-8009-17 | $ | 546.00 | |
5VMC | 1 | 05-8009-09 | $ | 438.00 | |
7.5VMC-S2 | 1 | 05-8045-05 | $ | 489.00 | |
7.5VMC-T, T5 | 1 | 05-8010-06 | $ | 489.00 | |
7.5VMB-S2 | 1 | 05-8045-13 | $ | 577.00 | |
7.5VMB-T, T5 | 1 | 05-8010-14 | $ | 577.00 | |
10VMC | 1 | 05-8046-04 | $ | 489.00 | |
10VMB | 1 | 05-8046-12 | $ | 577.00 | |
13 | Gib Key | 1 | 22-0559-09 | $ | 19.30 |
14 | Washer | 1 | 14-0219-01 | $ | 33.50 |
15 | Shim x .031 | 1 | 14-2055-04 | $ | 14.90 |
16 | Shim x .020 | 1 | 14-2055-12 | $ | 14.90 |
17 | Shim x .010 | 1 | 14-2055-20 | $ | 14.90 |
18 | Adaptor | 1 | 14-0504-13 | $ | 50.50 |
19 | Dowel Pin | 1 | 14-0382-10 | $ | 11.20 |
20 | Lock Washer | 1 | 14-0722-01 | $ | 1.30 |
21 | Cap Screw 3/8-16 x 1"L | 1 | 14-2493-04 | $ | 5.90 |
22 | Case w/Wear Ring & Plug: | ||||
VMC | 1 | 03-1906-00 | $ | 1,025.00 | |
VMB | 1 | 03-1906-18 | $ | 2,111.00 | |
23 | Wear Ring | 1 | 08-1001-09 | $ | 143.00 |
24 | Index Pin | 1 | 14-2015-03 | $ | 11.40 |
25 | Plug 1/4"NPT - Galvanized VMC | 1 | 31-0059-11 | $ | 1.90 |
25 | Plug 1/4"NPT - Brass VMB | 1 | 31-0059-29 | $ | 3.70 |
26 | Gasket | 1 | 13-0191-04 | $ | 13.40 |
27 | Hex Cap Screw 3/8-16 x 7/8"L: | ||||
VMC - 8 / Pkg | 1-8 pk | 14-1293-24 | $ | 5.00 | |
VMB - 8 / Pkg | 1-8 pk | 14-1293-16 | $ | 9.00 | |
28 | Grommet - 8 / Pkg | 1-8 pk | 14-0005-09 | $ | 65.90 |
29 | Strainer Body: | ||||
VMC | 1 | 39-0647-04 | $ | 1,025.00 | |
VMB | 1 | 39-0647-12 | $ | 2,055.00 | |
30 | Plug 1/4"NPT - Galvanized VMC | 1 | 31-0059-11 | $ | 1.90 |
30 | Plug 1/4"NPT - Brass VMB | 31-0059-29 | 3.70 | ||
31 | Strainer Basket | 1 | 16-0707-08 | $ | 438.00 |
32 | O-Ring 7-1/4" x 7-3/4" | 1 | 47-0442-01 | $ | 13.40 |
33 | Strainer Cover: | ||||
VMC | 1 | 39-0648-03 | $ | 129.00 | |
VMB | 1 | 39-0648-11 | $ | 304.00 | |
34 | Lock Knob Assembly - 2 / Pkg | 1-2 pk | 39-0646-05 | $ | 56.70 |
35 | Gasket | 1 | 13-1223-04 | $ | 10.80 |
36 | Hex Cap Screw 3/8-16 x 7/8"L: | ||||
VMC - 8 / Pkg | 1-8 pk | 14-1293-24 | $ | 5.00 | |
VMB - 8 / Pkg | 1-8 pk | 14-1293-16 | $ | 9.00 | |
37 | Grommet - 8 / Pkg | 1-8 pk | 14-0005-09 | $ | 65.90 |
Pump Flange Assembly Kits |
|||
Assembly Kit Includes 3"& 4" Flanges and Gaskets. | 1 |
KIT-ZN |
$ 152.00 |
Zinc Bolts, Nuts & Washers. | |||
Assembly Kit Includes 3"&4" Flanges and Gaskets. | 1 |
KIT-SS |
$ 205.00 |
Stainless Steel Bolts, Nuts & Washers. | |||
All Prices Are In Canadian Dollars - FOB Cambridge, ON Canada | |||
Specifications, prices & delivery are subject to change without notice. E. & O.E. |
